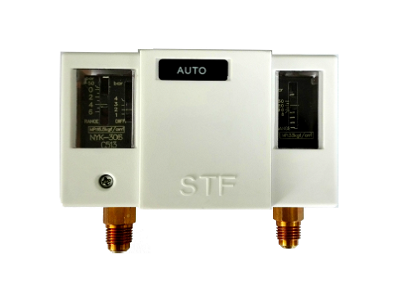

NYK Series improved high-performance pressure controller for pressure control and pressure protection. When the system pressure reaches the set value, the switch automatically cuts (or turns on) the circuit.
contact usNYK Series improved high-performance pressure controller for pressure control and pressure protection. When the system pressure reaches the set value, the switch automatically cuts (or turns on) the circuit.
- The new bellows welding structure and technology, external leakage is close to zero risk.
- With a new structure design, the precision of pressure and differential pressure adjustment is high, and the repeated operating points are stable.
- In addition to the automatic reset type, it is also equipped with a high pressure manual reset type and a high and low pressure manual reset type.
- With pressure and differential pressure adjustment indicated by the scale.
- The connector is a standard bell mouth connector, M12 x 1.25 or 7/16"-20 UNF thread.
- Medium temperature: -20°C to +120°C; Ambient temperature: -20°C to +70°C.
Note: E is an English joint; F is a copper bellows, only applicable to Freon, not suitable for ammonia refrigerant; S is manual reset; SS is high and low pressure manual reset; MG is capillary connection.
